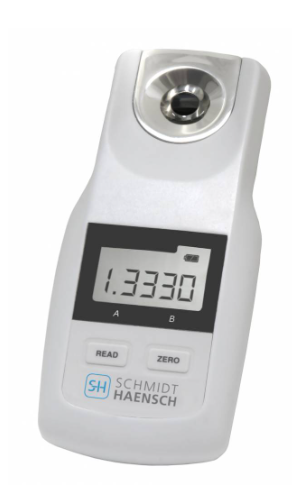

Digital handheld refractometer – Brixmeter
This digital handheld refractometer DHR by SCHMIDT + HAENSCH enables fast, on-site measurements of liquid with both high or low viscosity.
The full view of the LCD screen of the DHR displays reliable, high-precision results (up to five digits) within just 2 seconds. SCHMIDT + HAENSCH’s DHR is versatile and ideal for agriculture to determine harvest timing, or in the automotive industry to analyze antifreeze.
Features of the digital handheld refractometer
- Ideal refractometer for fast, on-site analysis
- Specific scales for many applications
- 5-digit LCD display
- Measurement results in fewer than 2 seconds
Easy to use
Place the sample on a flat surface, and results are available within seconds. For instance, using a handheld refractometer, you can easily determine the harvest time by measuring the sugar content in apples, just 0.1 ml of fruit juice is enough for analysis.
The Brix scale is temperature-compensated from +5 to 70 °C. Additional measurement scales are available upon request.
Specifications
| Calibration | Distilled Water |
| Prism Material | Optical Glass |
| Sample Temperature | 5 – 60 °C |
| Ambient Temperature | 5 – 40 °C |
| Automatic Temperature Correction | 5 – 70 °C for 0 – 80 Brix |
| Dimensions (LxWxD) | 115 x 54 x 30 mm |
| Weight | 85 g (without batteries fitted) |
| Power | 2 x AAA batteries |
| Ratings & Compliance | IP65 Dustproof/Water Resistant, CE, RoHS |
