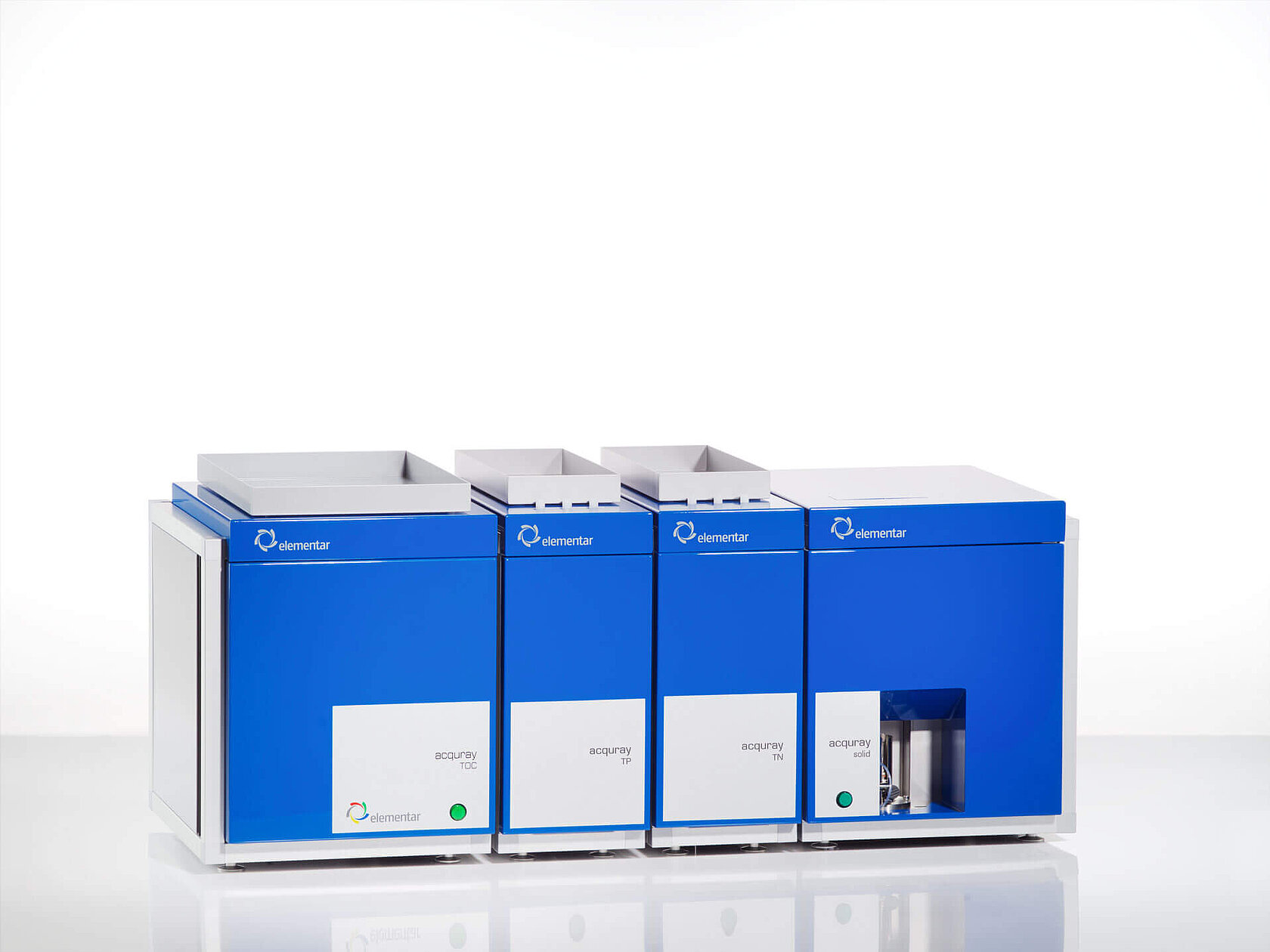

Acquray Series

Enter a new world of TOC analysis

With the acquray series, Elementar introduces an entirely new approach for easy Total Organic Carbon (TOC) analysis and more. This technology is based on a wet-chemical oxidation process supported by highly energetic UV radiation. This combination ensures complete digestion of all organic compounds and demivers precise measurement results.

The modular design allows for the addition of optional modules to the total organic carbon (TOC) base module for liquid samples. Modules for determine TOC, residual oxidizable carbon (ROC), total inorganic carbon (TIC) in solids, and total nitrogen (TN) in liquids. Total phosphorus (TP) in liquids can also be added at any time.

The instrument comes with predefined methods, completely calibrates itself automatically, and auto-alerts the whenever maintenance is required. This makes the acquray series the perfect solution for routine labs that need instruments with high laboratory efficiency and minimal downtime.

Specifications:

Measuring method
UV-/persulfate digestion for an injection volume up to 40 ml for the determination of NPOC, TOC, TIC, and TC in liquids. It also offers an optional colorimetric method for simultaneous determination of total nitrogen (TN) und total phosphorus (TP) in liquids. Additionally, the system supports solid sample analysis with true temperature ramping for determination of TOC, ROC, and TIC, all in compliance with DIN 19539 standards.

Large concentration range
From low ppb up to percent carbon for liquids.

Fully automatic
The system supports automated and unattended operation with the use of an autosampler, an automated acidification module, and PC control via Windows®. Additionally, optional 21 CFR Part 11 compliant software is available.

Easy & fast analysis for daily routine operation

The acquray series is built for maximum durability and minimal maintenance, ensuring industry-leading system uptime. Its well-organized, easy-accessible components reduce time spent on maintenance. The intuitive, user-friendly software simplifies instrument control, offers easy calibration features, and includes auto-alert functions for maintenance intervals. This makes performing analysis with the acquray series incredibly easy.
